EVA film for dimming film

1.Product Introduction

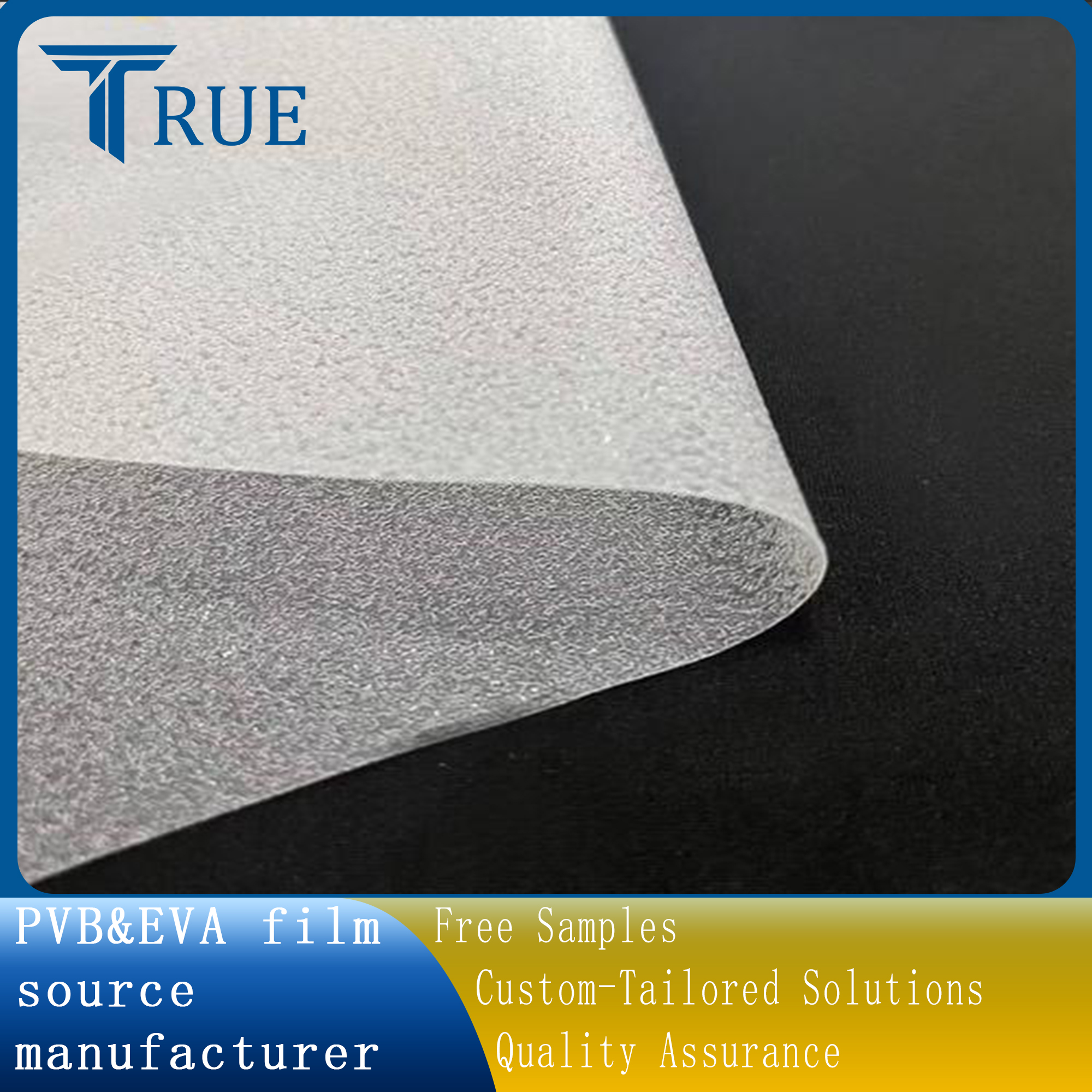

(PDLC) EVA film(0.8mm) for Smart glass it’s specially used for intelligent glass(bonding the liquid crystal film and glass firmly together)
Four major advantages:

• High light transmittance (light transmittance can reach 93%), showing perfect visual effect.
• Super strong bonding strength, safety is guaranteed.
• Perfect weather resistance, ensuring the service life of smart glass.
• The stability of the dimension solves the displacement problem of intermediate materials and improves the yield.

2.Product detailed parameters

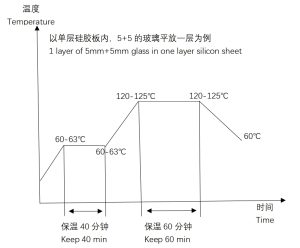

3.Processing Technic

Note:

1.After combining the glass, it must be wrapped around by high temperature tape(don’t worry about the exhaust).
2. Cold draw for 10 minutes, based on the temperature of the glass surface
2.Please delay the keeping time if the laminated glass thickness increased or SQM increased.

4.Application Cases

EVA Laminated Screen

High-clarity EVA film bonds etched/tempered glass, creating spider-web crack patterns when impacted. Redefine spatial poetry with fracture-resistant elegance.

———Where Art Meets Safety

EVA Safety Shower Glass

Blocks 99% UV rays, resists mildew with 0.1% water absorption. Thermal-stable structure ensures decades of crystal clarity even in steam.

———Innovation in Steam

EVA Acoustic Sliding Door

Superior high-frequency noise reduction, low-melt EVA seals microscopic gaps. Glide through light-filled spaces with whisper-quiet precision.

———Silence in Motion

5.Packaging and transportation

Single roll packaging

Palletizing

Carton packaging

Wooden case

PE film is used to isolate the intermediate film layers of rolled PVB to prevent adhesion; The outer layer is vacuum sealed with aluminum foil to ensure moisture and oxidation resistance; The outermost layer is packaged in nylon bags and rolled up；4/6/8/10 rolls packaged in a wooden crate

6.Save method

1) EVA laminated glass adhesive film is usually required to be stored in a ventilated, dry, and clean warehouse, avoiding direct radiation from light and heat sources; Prevent rain, heavy pressure, external impact, and scratches from hard objects; The temperature in the warehouse should not exceed 30 ℃, and the humidity should not exceed 60%; When there is a large inventory of film, a tray should be placed under the film to facilitate ventilation, heat dissipation, and moisture isolation. If the film is subjected to pressure, heat, or excessive moisture, it may exhibit varying degrees of self adhesion. If possible, please hang it for storage and avoid heavy pressure as much as possible. If the surface humidity of the adhesive film is too high, it will also affect the bonding strength between the adhesive film and glass or other adhesives, affecting normal use.

2)EVA laminated glass film is prohibited from being stored in the same warehouse as flammable and explosive materials; The remaining film after use must be repackaged with clean materials to prevent the weak static electricity carried by the film itself from adsorbing dust and contaminating the film, affecting normal use.

3) EVA laminated glass film has an “effective storage period” of ten months from its production. Customers with inventory turnover must perform a rolling operation of “storing new and using old”. If customers use film that has exceeded the storage period for production and processing, we are not responsible for the quality of their products. If the film purchased by the customer has not been used for a long time and the storage period has exceeded the “effective storage period”, regardless of whether there are inherent quality problems with the product, we will not process returns or exchanges.

7.Special Warning

Whether it is EVA film or intermediate materials (such as photo paper), due to improper storage, there will be “discharge” phenomenon in rainy and humid weather. Even if glass appears, there will still be a thin layer of water mist floating on the surface of the glass. If this “moisture” phenomenon is not ruled out, the bonding strength of tempered glass after processing and forming will be greatly affected. Therefore, customers are advised to avoid high humidity weather during production. Proper drying of materials and glass is beneficial for improving bonding strength.
